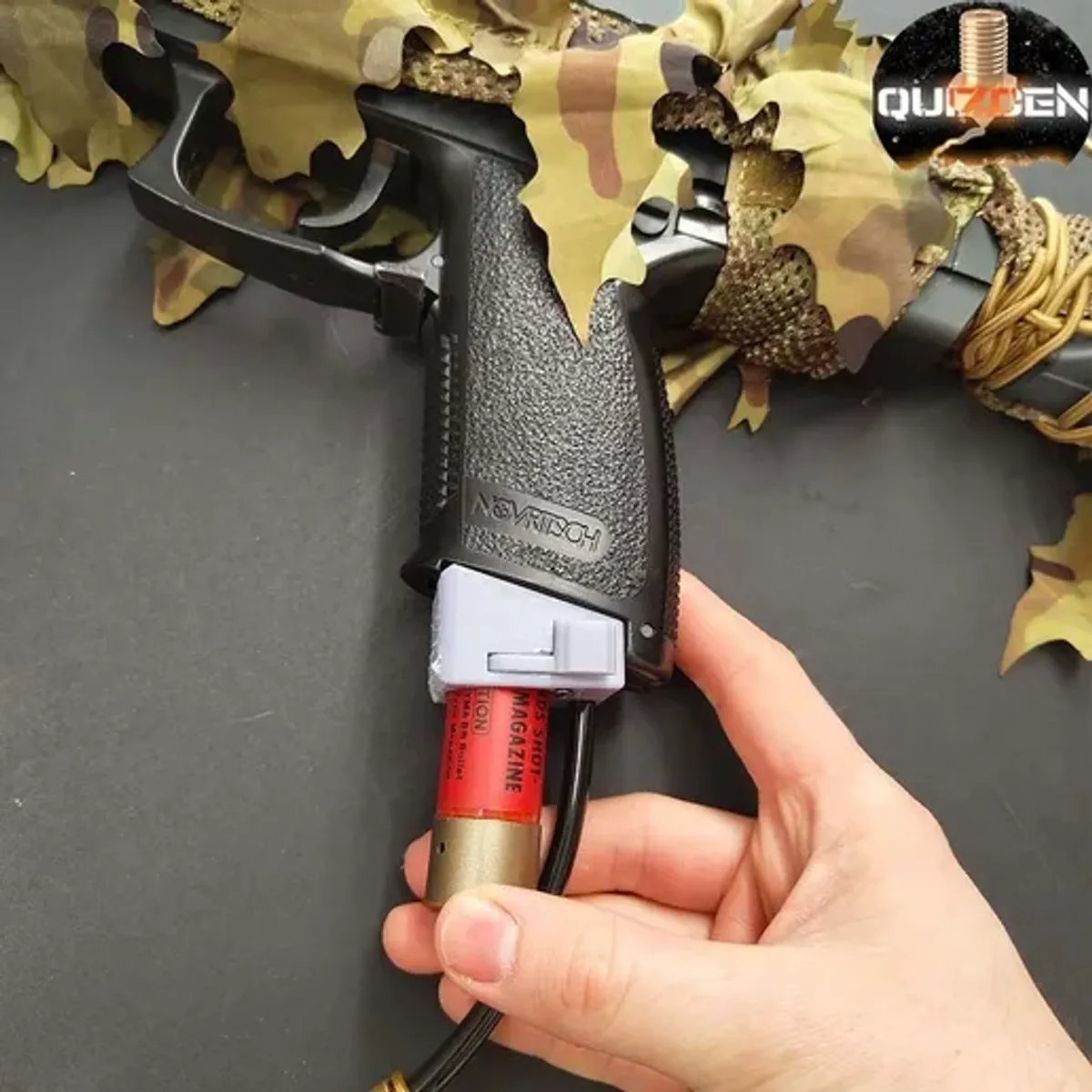

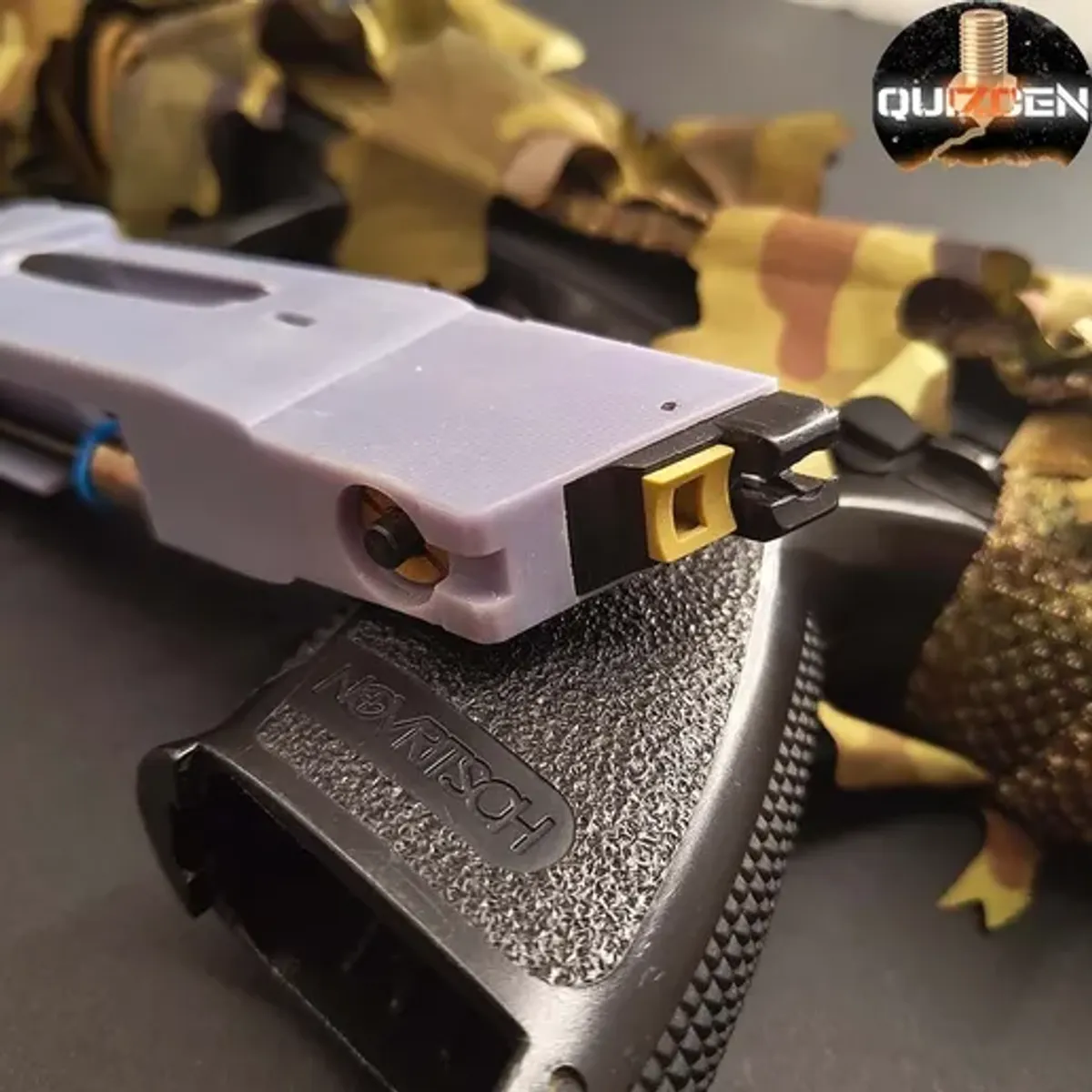

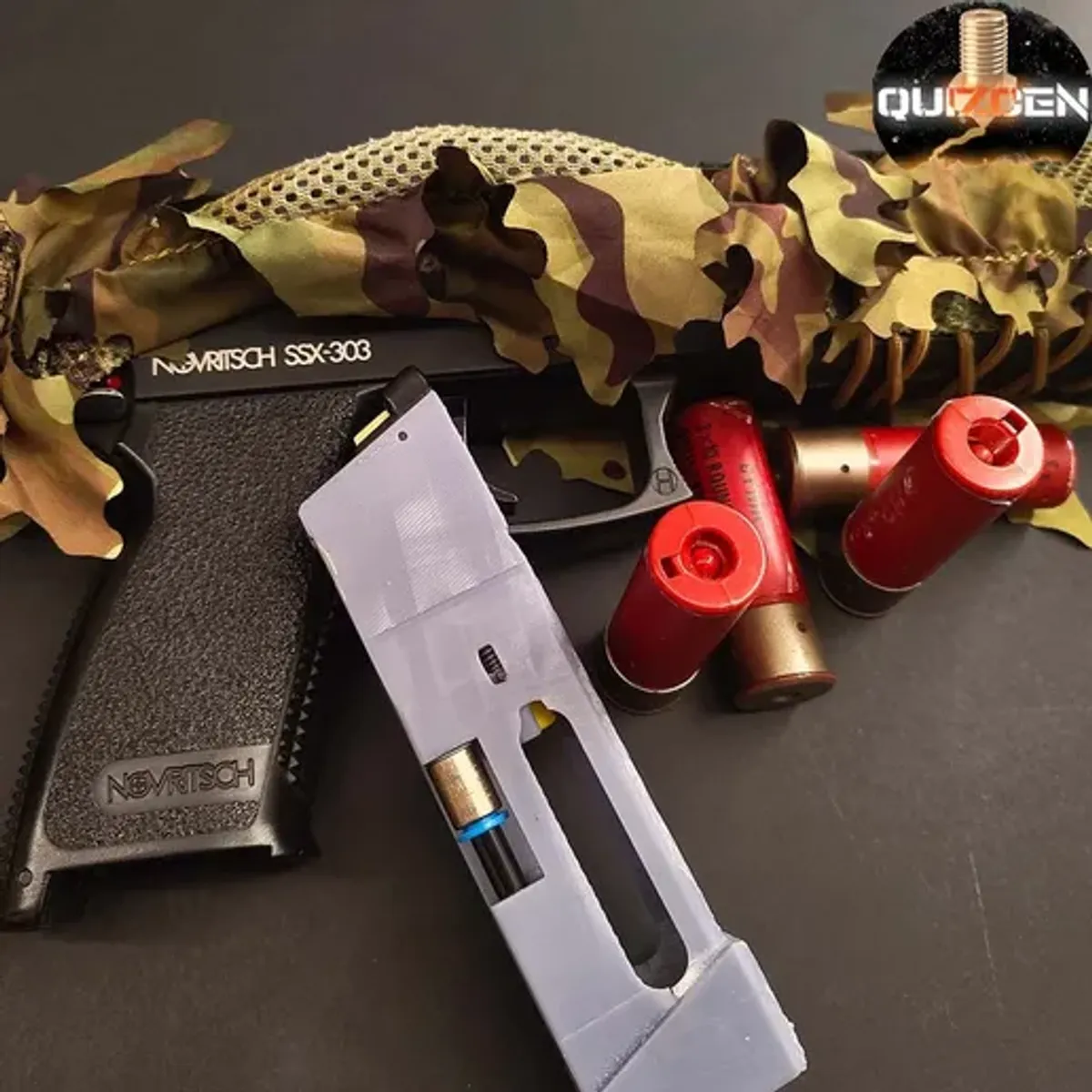

[STL] MK23/SSX23 Shotgun Shell Adapter

I designed these improved Shell adapters for the MK23. I have tested it with my Novritsch SSX303 and it works quite well. I used the gas route and libs from the same original mags.

There are many fine designs on the market already, but none of the DIYs worked for me, so I improved them and designed my own from scratch! What does mine have that the others don't?

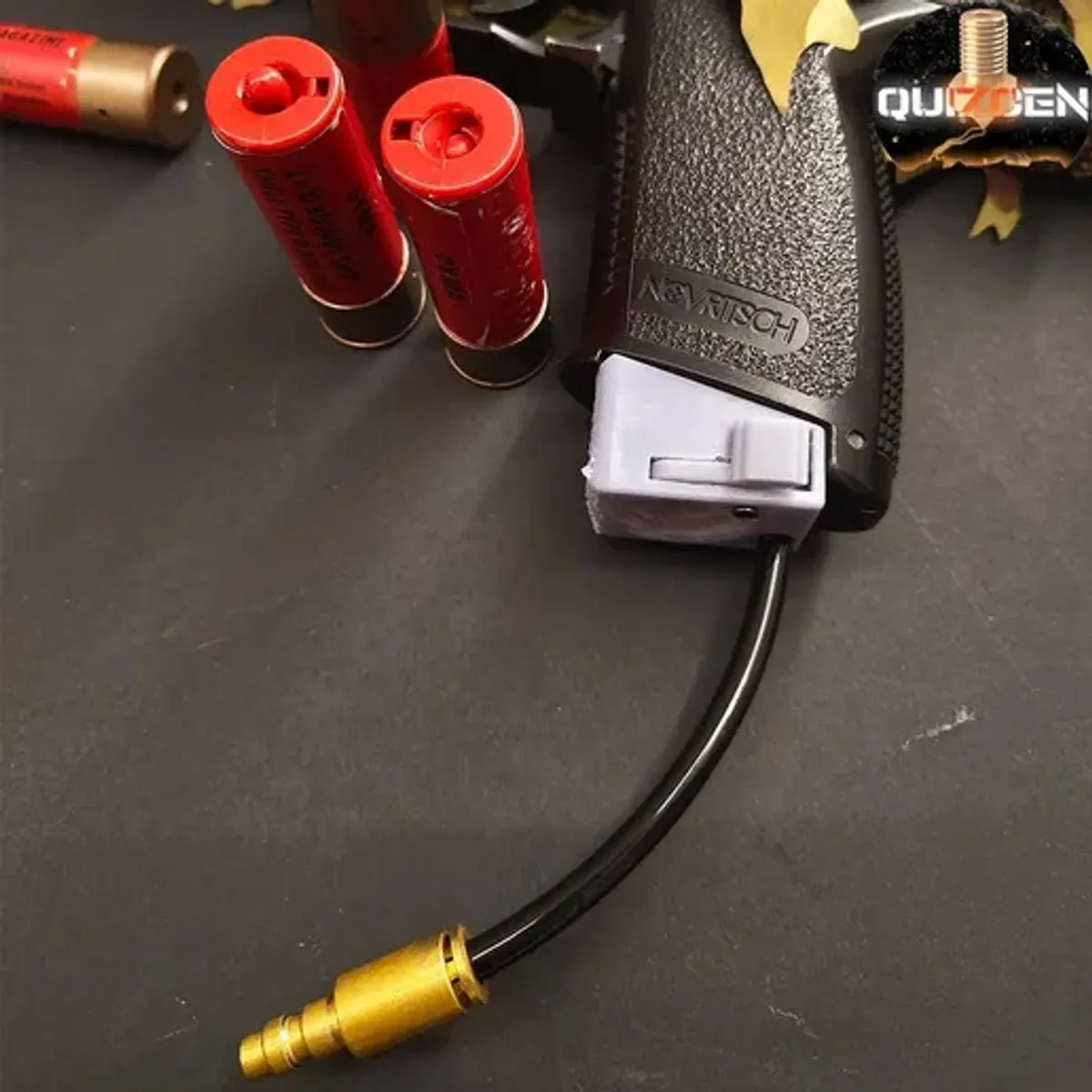

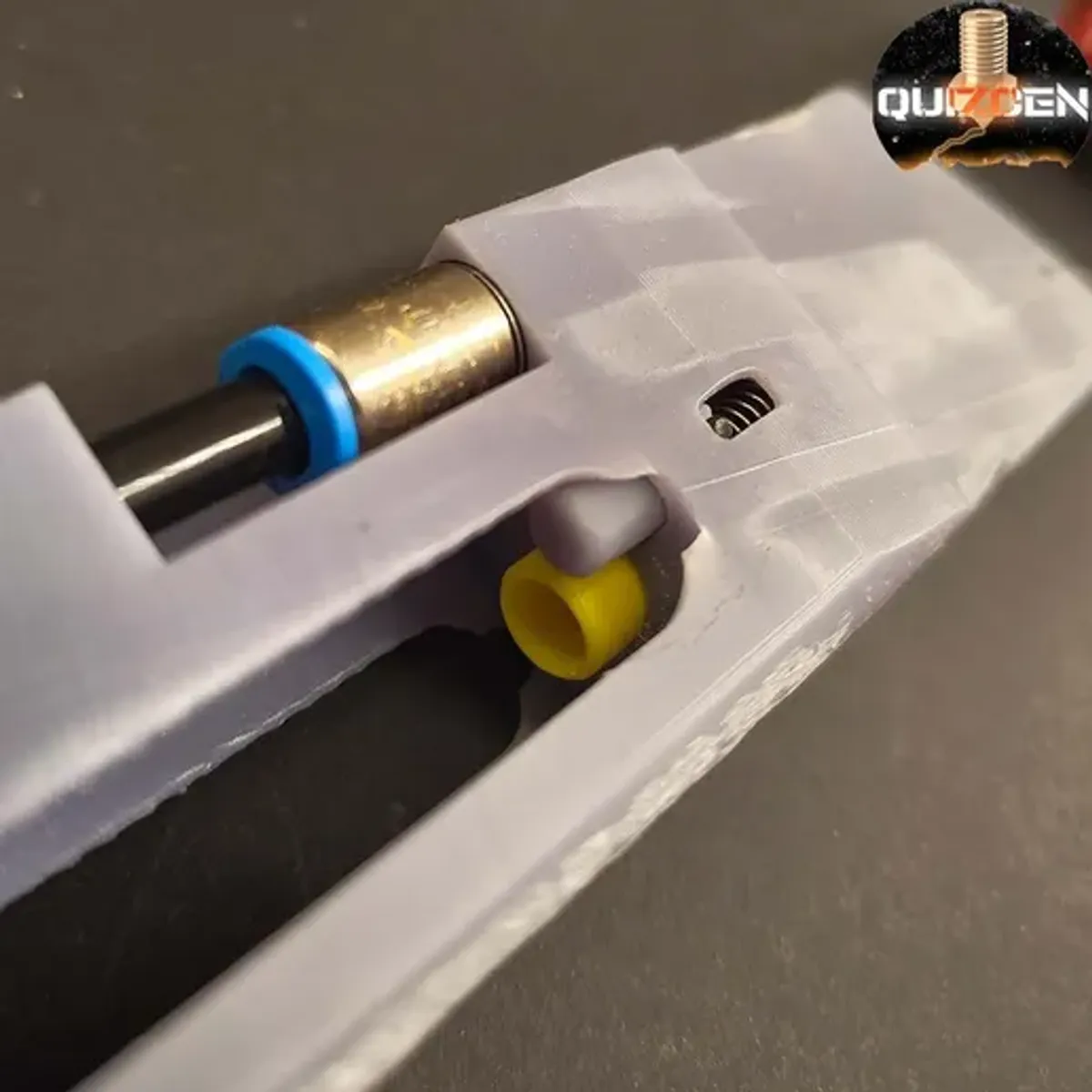

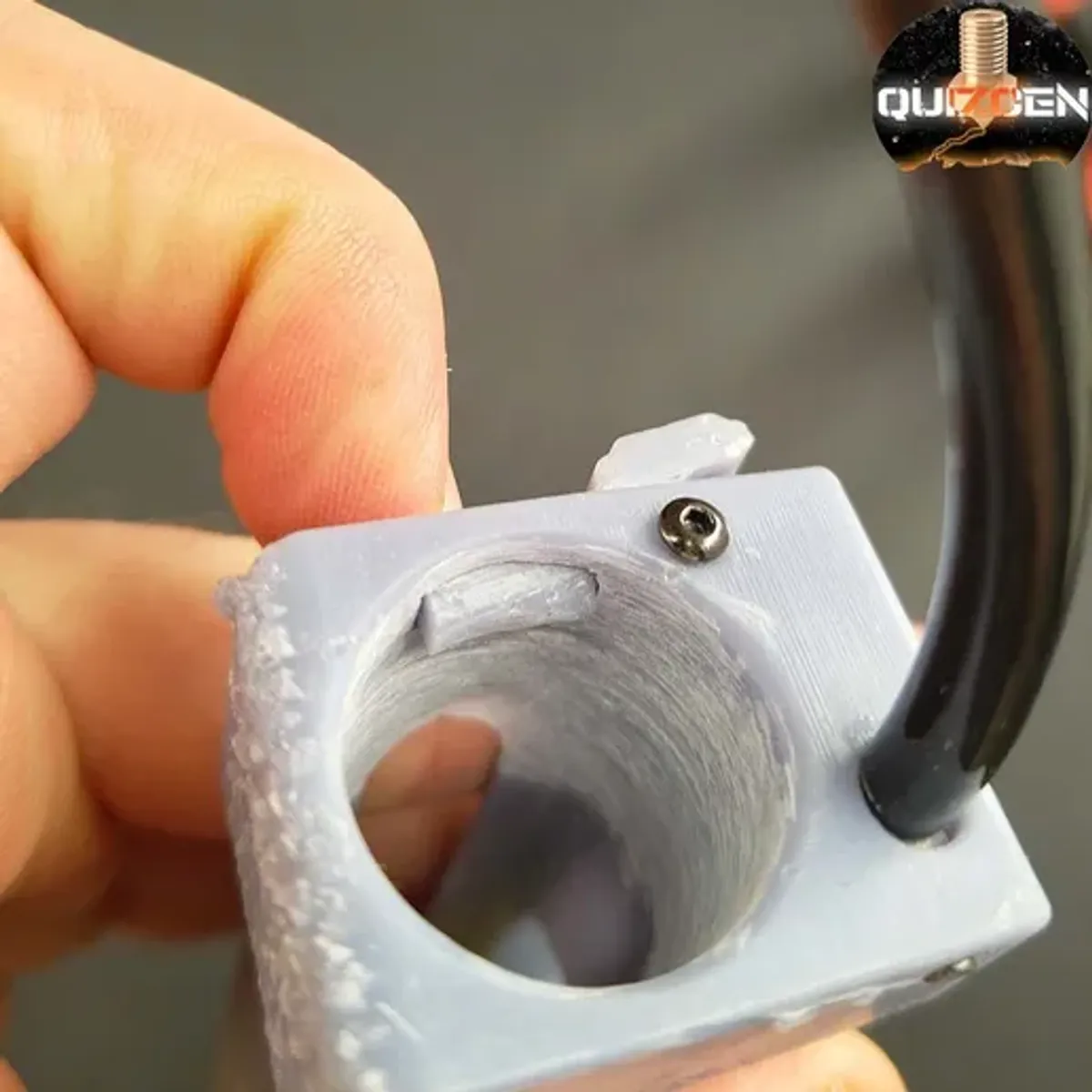

A proper working BB retention system, 1-2bbs falls out, A hose clamp, so the Festo connector doesn't get rotated and strip the small threads (Which happened to my first version mid-game), Powerful ejection pin with the option of adding a second loose spring-

Additionally, I added a few shell latches at different heights to suit every shell. The shells may have different heights, so the latch can be exchanged to fit most shells. There is a 2.4, 2.6, 2.8 and 3.0 mm version. You may need to sand this part slightly to get it to fit.

You do need an SLA printer for this to work. Additionally, you do need files and tools to make everything work. A build guide will be available sometime in the future, but most parts make pretty good sense of where they are going.

Parts needed:
- 1 pcs - M2x8mm (For the Shell Opener)
- 1 pcs - M2x5mm (For the hose clamp)
- 1 pcs - M2.5X16mm (For the latch)
- 1 pcs - Rod 2x18mm (For BB retention)
- 2 pcs 4.5mm springs (Lengths 15 or 20 mm)
- 1 pcs - Festo QSM-M7-6-I (for the hose)
- +10 cm 6x4mm hose
- 1 pcs - HPA Connector (US or EU)


Please print the adapter at an angle and use support. Please manually remove any support that is generated inside the magazine, so the thread, bb route, internal gas chamber.
Printed on an Anycubic Photon M3 with Anycubic flexible thought resin, with an exposure time of 5 sec.
