[STL] M4 Shell Adapter 3D STL File

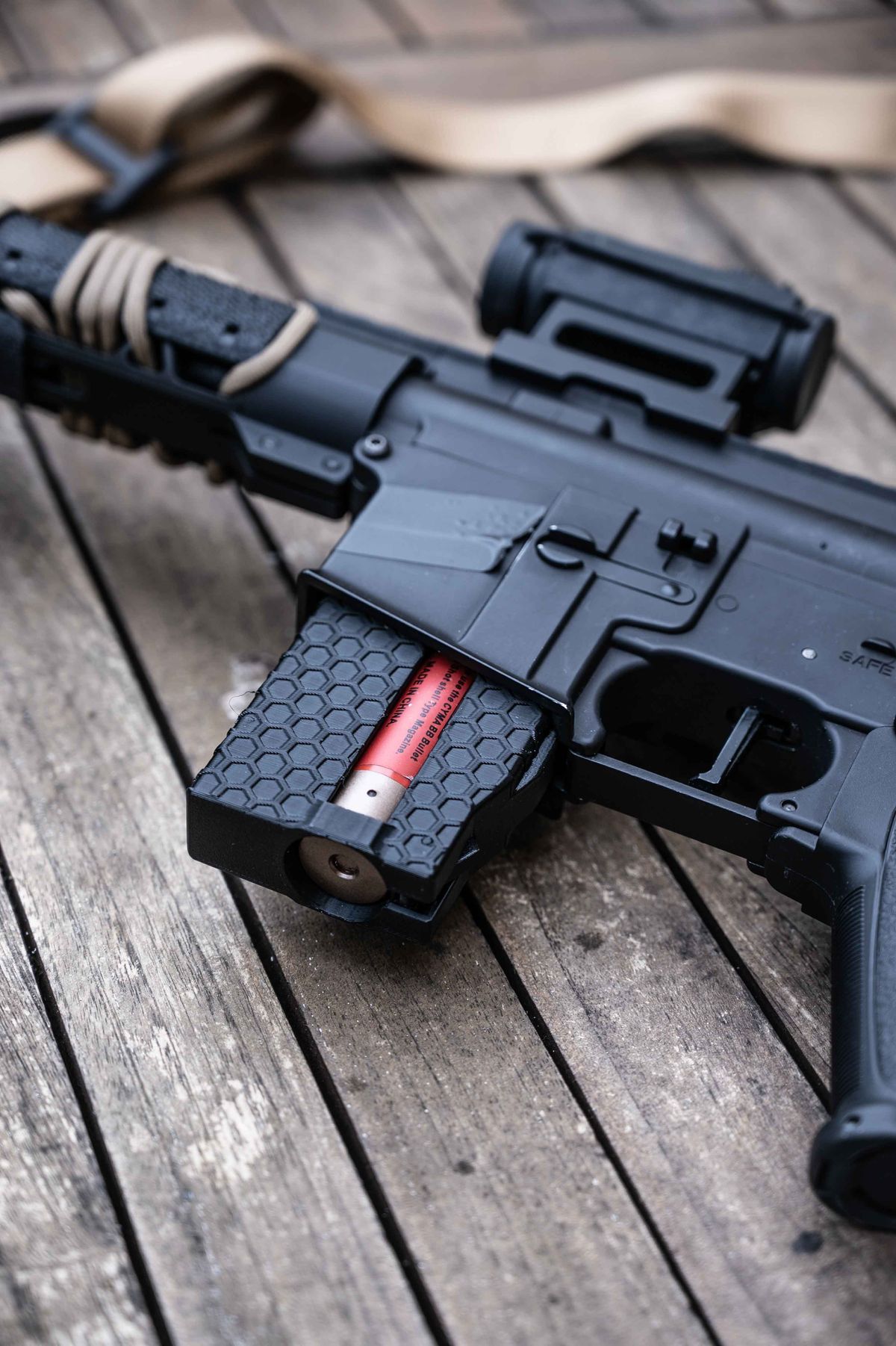

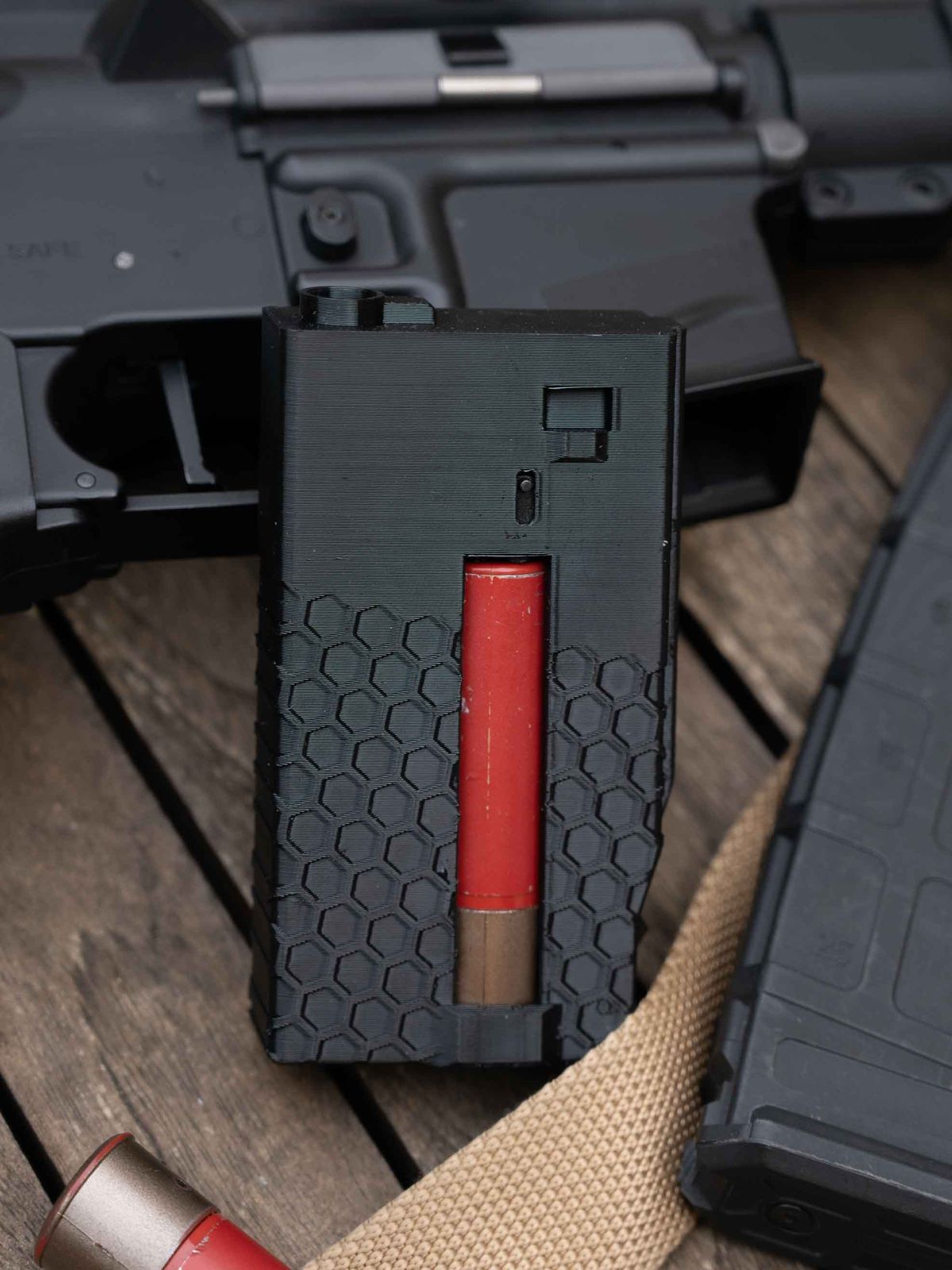

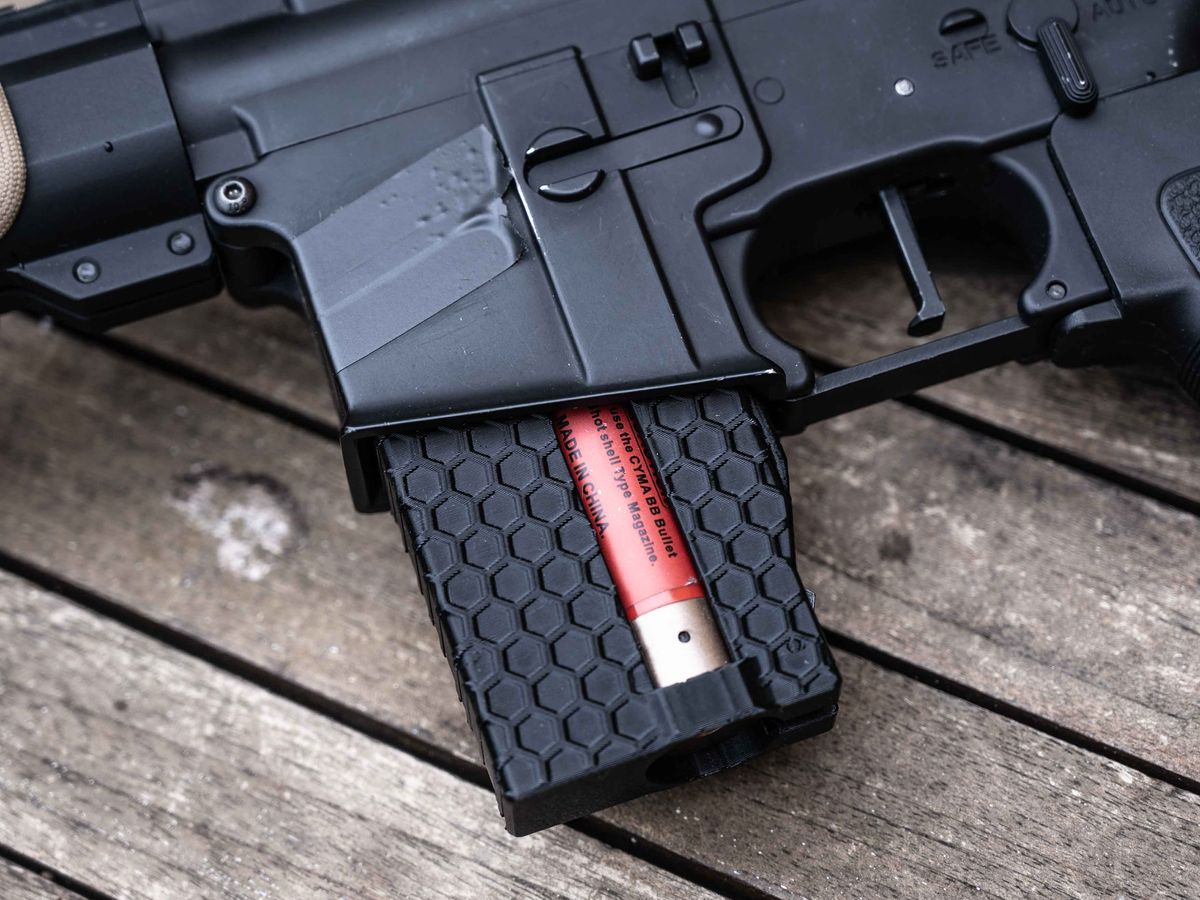

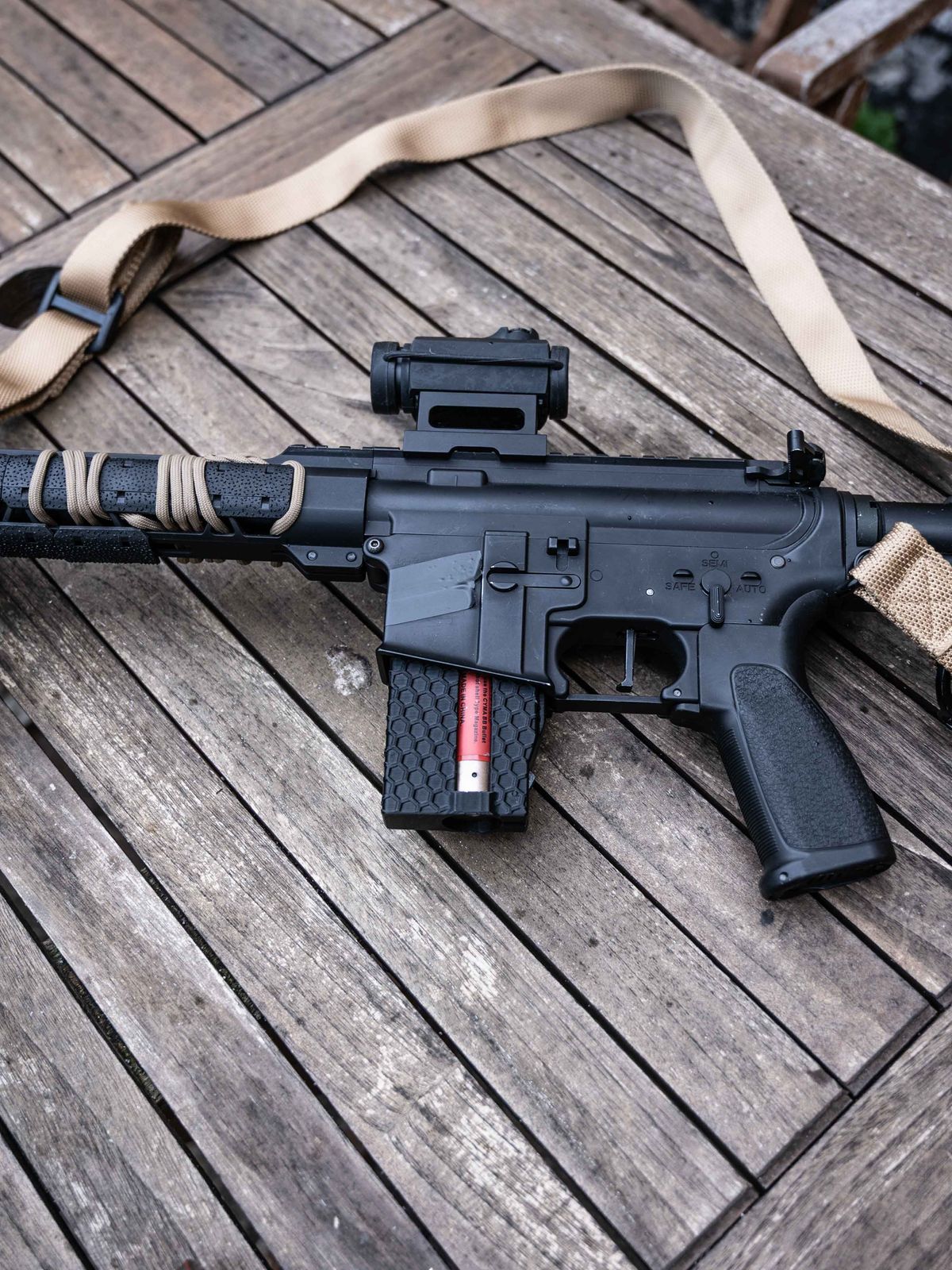

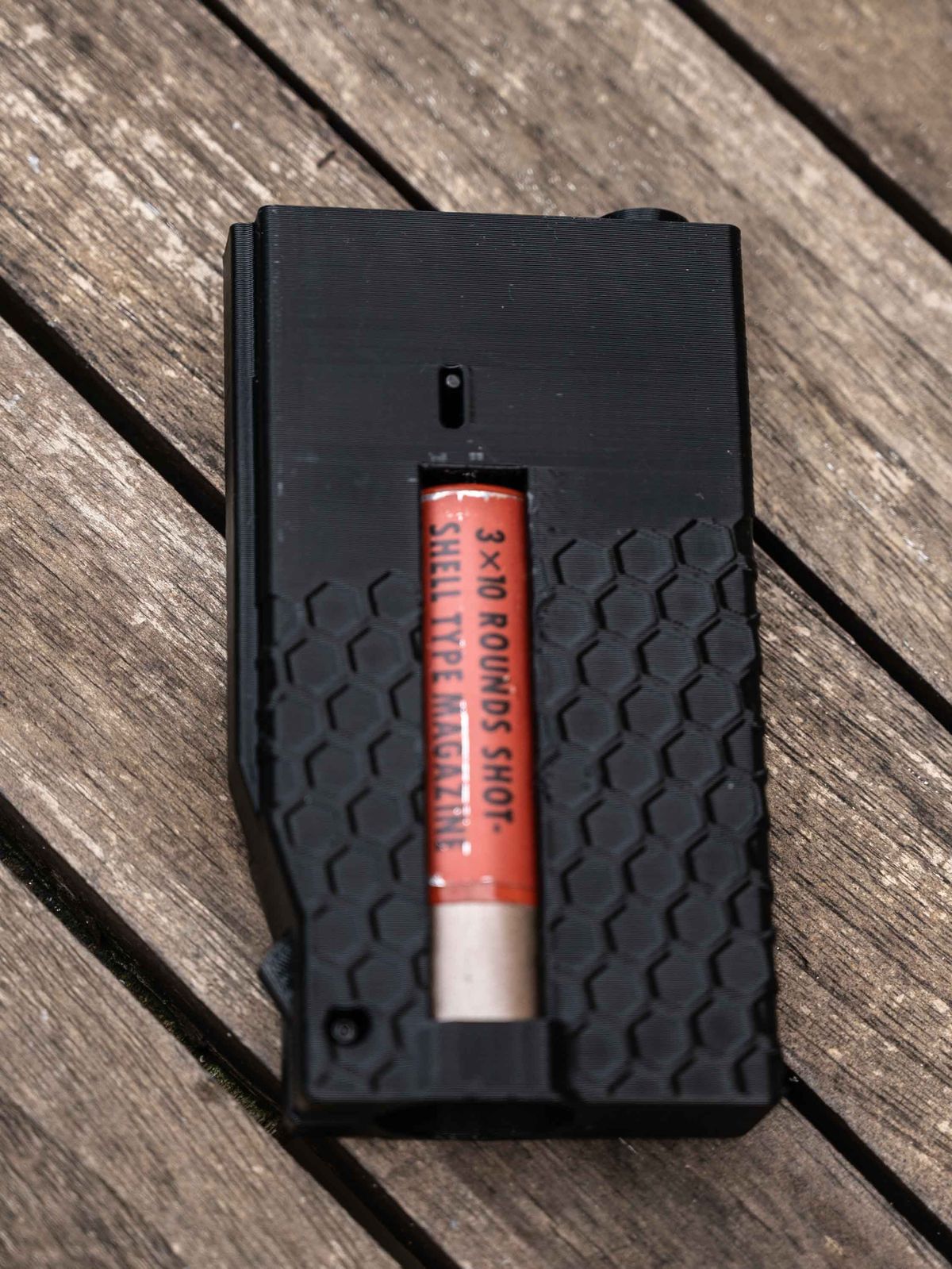

M4 Shell Adapter – Minimalist Ammo, Maximum Fun
Take your airsoft game to the next level with the M4 Shell Adapter – designed for players who prefer precision over spray. Each shell holds just 30 BBs, giving you that authentic low-capacity DMR experience or simply a fresh new way to enjoy the game. These compact shells take up virtually no space, making them perfect for minimalist loadouts or tactical kits where every gram counts.

What sets this design apart? A proper BB retention system

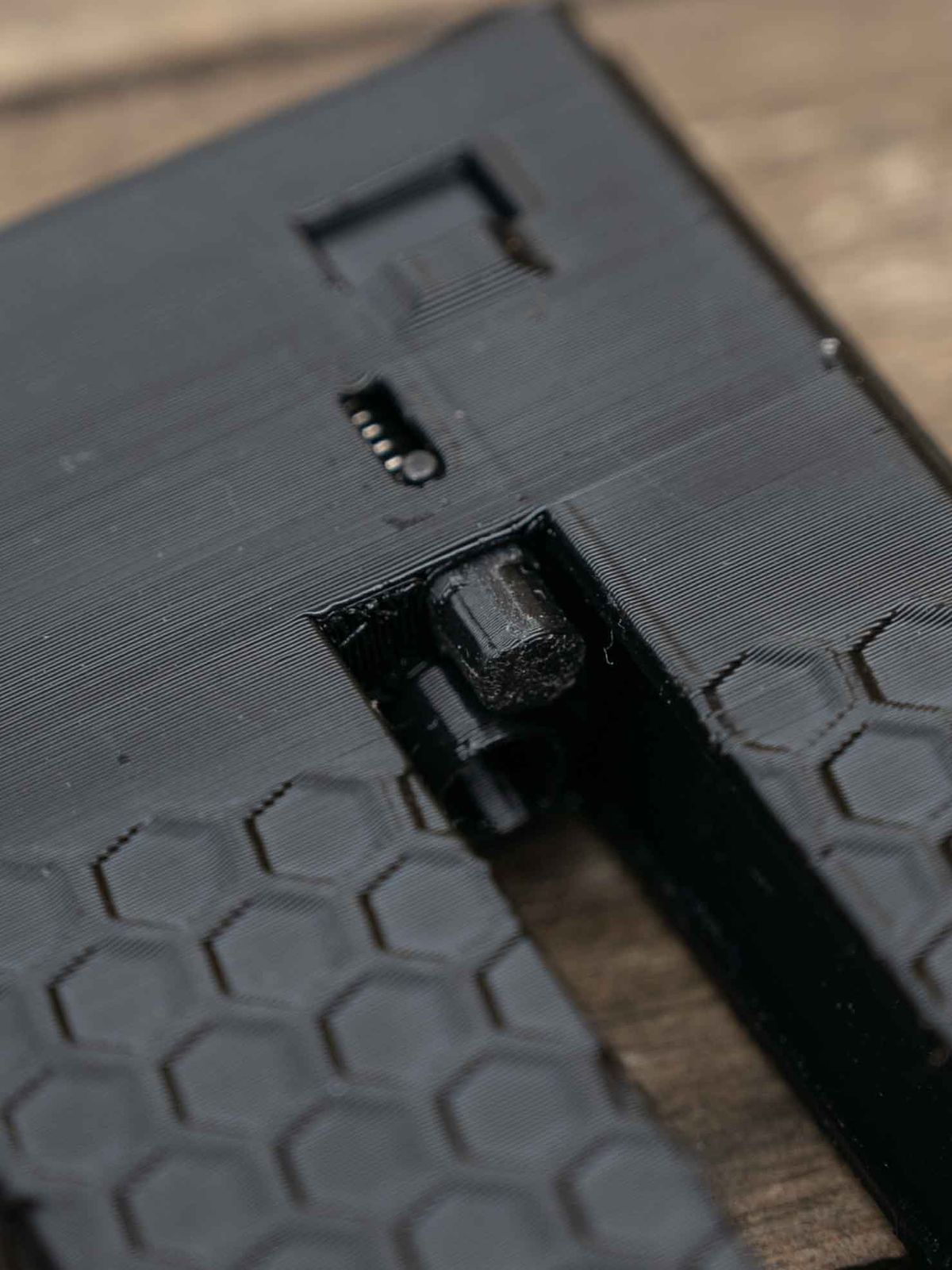

Unlike other shell adapters, this one features a mechanical BB retention pin that ensures minimal BB loss during reloads. When reloading, only two BBs drop—the rest are held securely in place by the retention pin, which slides into the BB tube to block the feed path.

This system is far more reliable than typical O-ring solutions, which can wear out, deform, or break over time. It’s a smarter, cleaner, and more durable approach to shell-fed gameplay.

🔧 What You Need to Build
Before printing, make sure to source the following hardware:
- BB Retention Pin: Ø2mm x L22–24mm
- Latch Pin: Ø1mm x 10–12mm (or use ~1mm wire)
- Latch Screw: M2.5 x 16mm
- BB Tube Screw: M2 x 5mm
- Springs (2 pcs): Ø4.5mm x 15mm

*More information, links, and guides are available here: *buymeacoffee.com/quizcen/M4SA

💬 Need Help or Want to Connect?
Join the Quizcen Airsoft Discord for build support, community tips, and exclusive giveaways. Whether you're a DMR specialist or just experimenting with new gear, this is the place to be.
https://discord.com/invite/XFdMX947JP

This adapter is a unique way to make your M4 stand out. Grab the files, print your own, and enjoy the realism of limited ammo play.
🔫 Lock, load, and level up your airsoft experience.

Updates:
20/07/2025 Uploaded V1.0 to cults
3D printing settings

Material: PETG or PLA+
Walls: 2–3
Infill: 15–30%

Supports: Required only for the shell internals – See the guide under support: buymeacoffee.com/quizcen/M4SA

Tested on a Prusa Core One using CCTREE PETG Black. A brim is optional but may help with bed adhesion on certain printers. Personally, I had zero issues without one.
