Deep Dive into Architecture Patterns

VIPER (View, Interactor, Presenter, Entity, Router)

VIPER is a robust architecture pattern designed to improve the modularity, testability, and maintainability of iOS applications. It breaks down the app into five distinct layers:

View: Responsible for displaying data and receiving user actions.
Interactor: Contains the business logic, interacts with entities, and requests data from a data manager or API.
Presenter: Mediates between the View and Interactor, preparing data for presentation and handling user interactions.
Entity: Simple data structures or models that represent the core data.
Router: Manages the navigation flow, transitioning between different screens or modules.

Example of a VIPER Module for a User Profile:

UserProfileViewController.swift (View)

protocol UserProfileViewProtocol: AnyObject {
    func displayUserProfile(_ profile: UserProfile)
}

class UserProfileViewController: UIViewController, UserProfileViewProtocol {
    var presenter: UserProfilePresenterProtocol?

    override func viewDidLoad() {
        super.viewDidLoad()
        presenter?.viewDidLoad()
    }

    func displayUserProfile(_ profile: UserProfile) {
        // Display profile data in UI components
    }
}

UserProfilePresenter.swift (Presenter)

protocol UserProfilePresenterProtocol: AnyObject {
    func viewDidLoad()
    func showUserProfile(_ profile: UserProfile)
}

class UserProfilePresenter: UserProfilePresenterProtocol {
    weak var view: UserProfileViewProtocol?
    var interactor: UserProfileInteractorProtocol?
    var router: UserProfileRouterProtocol?

    func viewDidLoad() {
        interactor?.fetchUserProfile()
    }

    func showUserProfile(_ profile: UserProfile) {
        view?.displayUserProfile(profile)
    }
}

UserProfileInteractor.swift (Interactor)

protocol UserProfileInteractorProtocol: AnyObject {
    func fetchUserProfile()
}

class UserProfileInteractor: UserProfileInteractorProtocol {
    var presenter: UserProfilePresenterProtocol?
    var userProfileService: UserProfileServiceProtocol?

    func fetchUserProfile() {
        userProfileService?.fetchUserData { [weak self] profile in
            self?.presenter?.showUserProfile(profile)
        }
    }
}

UserProfileRouter.swift (Router)

protocol UserProfileRouterProtocol: AnyObject {
    func navigateToEditProfile()
}

class UserProfileRouter: UserProfileRouterProtocol {
    weak var viewController: UIViewController?

    func navigateToEditProfile() {
        let editProfileVC = EditProfileRouter.createModule()
        viewController?.navigationController?.pushViewController(editProfileVC, animated: true)
    }
}

UserProfileEntity.swift (Entity)

struct UserProfile {
    let name: String
    let email: String
    let age: Int
}

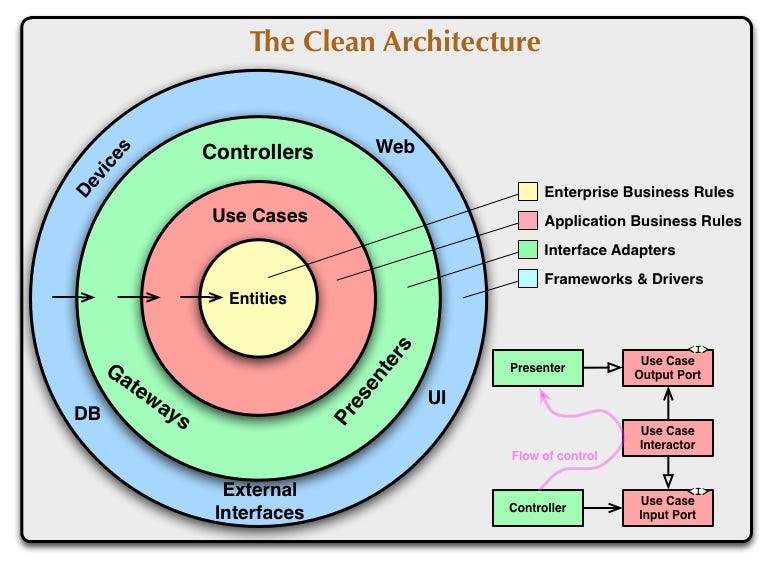

Clean Architecture

Clean Architecture focuses on the separation of concerns into several layers. The core idea is that business logic (Use Cases) is independent of UI and external frameworks. It consists of the following layers:

Entities: Core business logic and data structures.
Use Cases: Application-specific business rules.
Interface Adapters: Presenters, controllers, and gateways that convert data from and to the use case layer.
Frameworks & Drivers: External components like UI, database, and networking.

Example of a Clean Architecture Module for a User Profile:

UserProfileEntity.swift (Entity Layer)

struct UserProfile {
    let id: Int
    let name: String
    let email: String
}

GetUserProfileUseCase.swift (Use Cases Layer)

protocol GetUserProfileUseCaseProtocol {
    func execute(completion: @escaping (UserProfile) -> Void)
}

class GetUserProfileUseCase: GetUserProfileUseCaseProtocol {
    private let userRepository: UserRepositoryProtocol

    init(userRepository: UserRepositoryProtocol) {
        self.userRepository = userRepository
    }

    func execute(completion: @escaping (UserProfile) -> Void) {
        userRepository.fetchUserProfile { user in
            completion(user)
        }
    }
}

UserProfilePresenter.swift (Interface Adapters Layer)

protocol UserProfileViewProtocol: AnyObject {
    func displayUserProfile(name: String, email: String)
}

class UserProfilePresenter {
    private let getUserProfileUseCase: GetUserProfileUseCaseProtocol
    weak var view: UserProfileViewProtocol?

    init(getUserProfileUseCase: GetUserProfileUseCaseProtocol) {
        self.getUserProfileUseCase = getUserProfileUseCase
    }

    func onViewLoaded() {
        getUserProfileUseCase.execute { [weak self] profile in
            self?.view?.displayUserProfile(name: profile.name, email: profile.email)
        }
    }
}

UserProfileViewController.swift (Frameworks & Drivers Layer)

class UserProfileViewController: UIViewController, UserProfileViewProtocol {
    var presenter: UserProfilePresenter?

    override func viewDidLoad() {
        super.viewDidLoad()
        presenter?.onViewLoaded()
    }

    func displayUserProfile(name: String, email: String) {
        // Update UI elements
    }
}

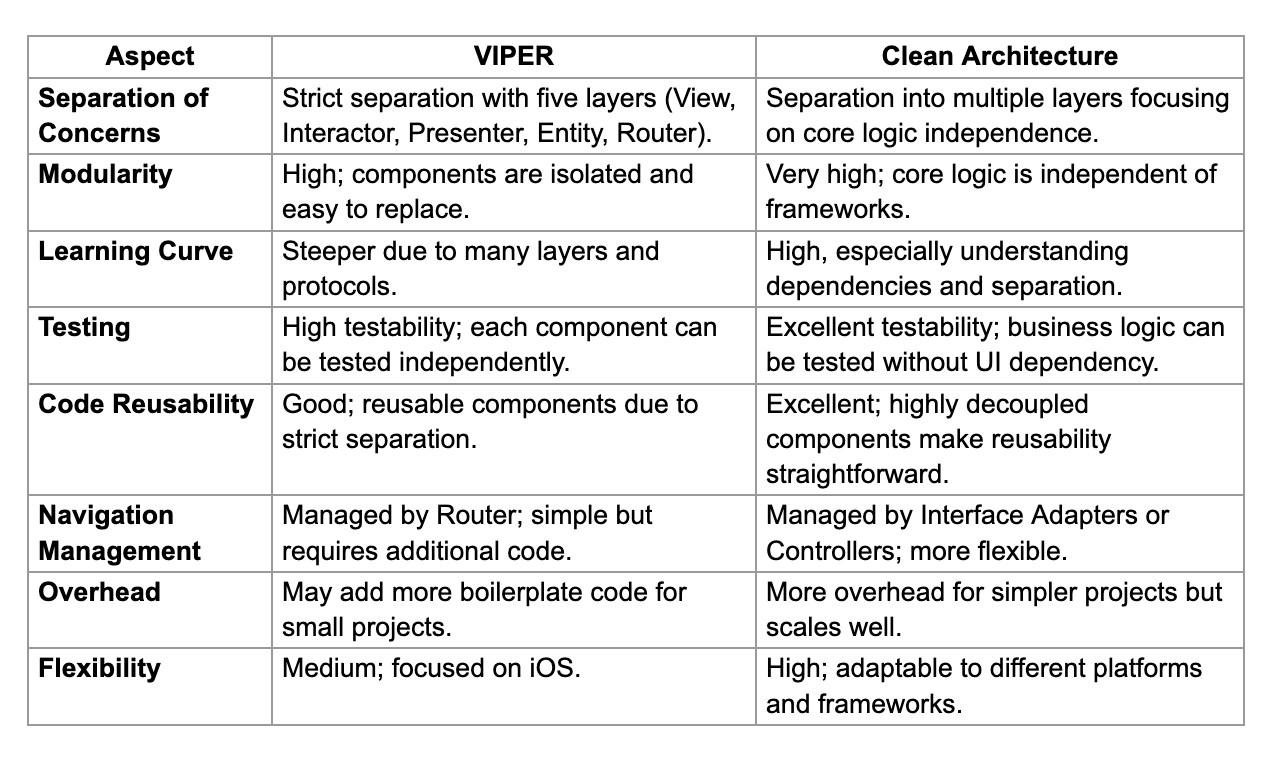

Detailed Comparison

When to Use VIPER vs Clean Architecture?

When to Use VIPER:

Large, Complex iOS Applications: If your app has multiple screens with complex interactions, VIPER’s modular approach can help maintain a clean and organized codebase.
Projects with Strict Separation of Concerns Requirement: VIPER’s clear boundaries between components make it easier to manage dependencies.
Teams with Specific Component Responsibilities: Different teams can work on different modules simultaneously without interfering with each other’s work.
Applications Requiring High Testability: VIPER’s separation makes unit testing more straightforward, isolating business logic, view, and navigation.

When to Use Clean Architecture:

Cross-Platform or Multi-Framework Applications: Clean Architecture’s core business logic is independent of frameworks, making it easier to reuse code across platforms.
Long-Term Scalability and Flexibility: Applications that are expected to evolve over time benefit from the clear separation and independence between layers.
Complex Business Logic with Interactions Between Multiple Entities: Clean Architecture’s use cases provide a clear location for implementing complex rules.
Maintaining Codebase Integrity Over Time: When you want to minimize the impact of changes in one part of the application on other parts, Clean Architecture’s isolation of dependencies helps.

Real-Time Problems and Solutions

Problem 1: Over-Engineering for Simple Apps

Scenario: Using VIPER or Clean Architecture for a simple app with just a few screens can result in unnecessary complexity.
Solution: Consider using simpler patterns like MVC or MVVM for smaller projects. Apply VIPER or Clean Architecture only when the project requirements grow.

Problem 2: Navigating Between Modules in VIPER

Scenario: Managing navigation flow can become cumbersome with multiple modules requiring manual setup.
Solution: Utilize a centralized navigation manager or a coordinator pattern to manage complex flows in a more cohesive manner.

Problem 3: Dependency Management in Clean Architecture

Scenario: Dependencies between layers can lead to tight coupling if not managed correctly.
Solution: Use dependency injection frameworks like Swinject or Resolver to handle dependencies efficiently. Keep a clear interface between layers to reduce coupling.

Problem 4: Handling Asynchronous Data Calls

Scenario: Both architectures deal with asynchronous data calls. Incorrect handling can lead to issues like race conditions or UI inconsistencies.
Solution: Use Combine or RxSwift to manage asynchronous data flows in a reactive manner. This provides a clear and predictable flow of data between layers.

Problem 5: Maintaining Consistent Data State Across Modules

Scenario: In VIPER, managing consistent state across modules can be challenging when different modules interact frequently.
Solution: Implement a shared data manager or repository pattern that is responsible for maintaining a single source of truth.

Conclusion

Both VIPER and Clean Architecture offer powerful benefits for structuring iOS applications, especially as projects grow in size and complexity. VIPER is more specific to iOS, providing clear boundaries and easy testability, while Clean Architecture offers greater flexibility and decoupling, making it ideal for projects targeting multiple platforms.

When choosing between these two architectures, consider the size, complexity, and long-term maintenance needs of your project. Both can be highly effective when applied correctly, and the choice often depends on your team’s familiarity and the specific requirements of the application.
